Please note - this is a used product with a short warranty. The printer was used as a demonstration machine - it printed about 40 hours of sample prints. The printer will be shipped in the original box unfolded / or folded in the non-original box as decided in shipping. Accessories may not be complete.

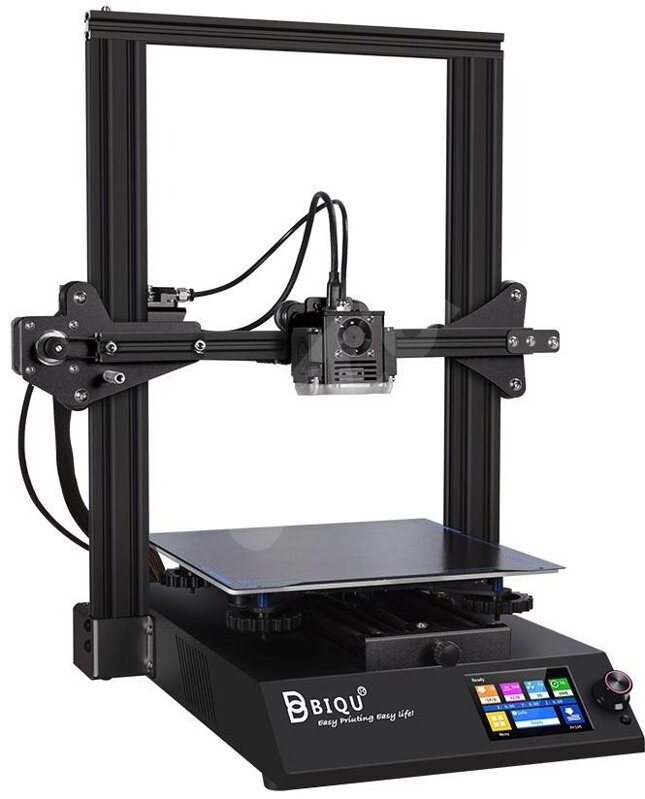

The BIQU B1 is essentially an improved clone of the Ender 3. It features a significantly larger print volume of 235 x 235 x 270 mm, adjustable Y-axis web tension and a compact base unit. It also includes a bowden extruder and a heated alternating pad, which should ensure fast and continuous heating.
Flexible metal pad
-Magnetic steel pad BIQU SSS (spring steel plate)
- Easily removable printing
- Can be used on both sides (extended service life)
32-bit control unit
- 32-bit Sk v1.4 motherboard with ARM Cortex-M3
-Combination with silent stepper drivers (Drivers) TMC2225 offers stable and silent operation
Very quiet 3D printer with the dual operating system
- The manufacturer states an operating noise level of 42.8 dB
- WIFI connection, BLTOUCH automatic leveling probe, BTT Smart Filament sensor or - because the B1 uses a USB Type-C cable for connection - the laser engraving head can also be easily replaced.
Touch interface
- BTT TFT35 V3.0 touchscreen display
- includes a model preview function or G-Code interface.
-dual operating system
- LEDs with different colour shades
Print area illumination
- The hotend is also equipped with coloured LEDs for easy viewing of the print even in low light conditions
Specifications:
- Print technology: FFF/FDM
- Printing area: 235 x 235 x 270 mm
- layer resolution: 0.1 - 0.3 mm
- print string diameter: 1.75 mm
- nozzle diameter: 0.4 mm
- position accuracy: x/y: 0.011mm. From: 0.0025mm
- Type of print strings: PLA, ABS, HIPS, PETG, Wood-Polymer, Nylon and others
- USB: Yes
- direct printing from PC: Yes
- Offline Print: Yes
- wifi: optional
- Auto-Leveling: Optional
- Object Cooling: Active
- print speed: 100 mm/s
- Connection options: PC via USB 2.0 and SD card
- Engine accuracy: +-0.1
- Power Source: 24V
- type C connector
- color touch screen - BTT TFT35 V3.0
- Newly integrated adapter board
- sheet of super flexible steel
- Filament sensor
- New nozzle design
- assembly time: 30 - 90 minutes
