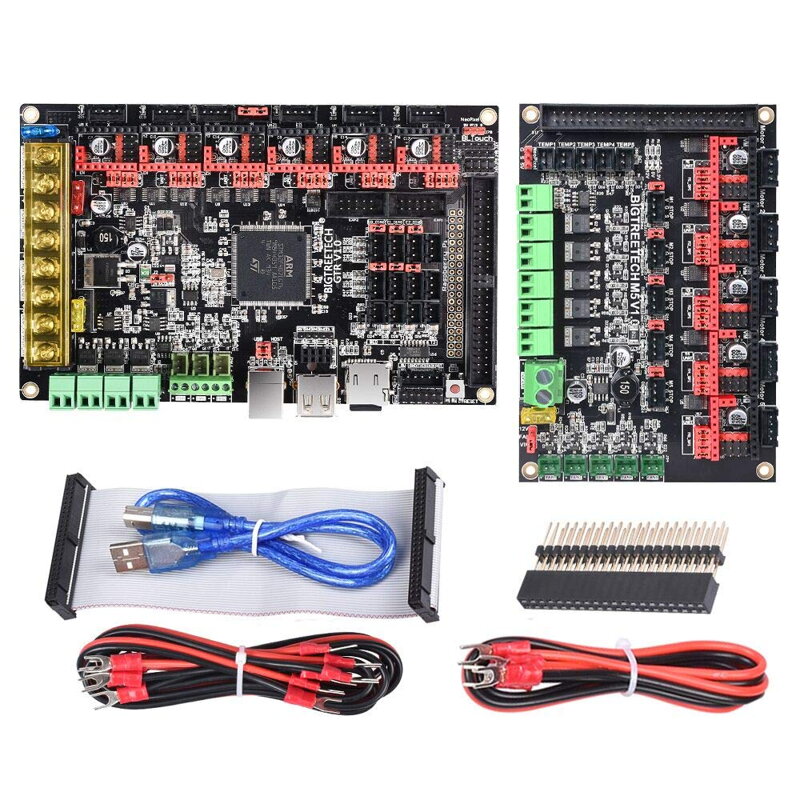

32 bit control board GTR v1.0 with M5 v1.0 Expanding module

32 bit control board GTR v1.0 with M5 v1.0 Expanding module

A new 32 -bit control board from BIQU with an expansion module of up to 11 engines. The main advantages include promoting discovery detection, a continuation of printing in the power failure, automatic shutdown after printing, automatic leveling and many more. Read more

Sold out

$103.95

Producer: BIQU

Other currencies

Approximation of price, the exact amount is at the end of the shopping cart



Description
  • Plate size: 165 x 103 mm
  • Mounting dimensions: 157 x 95 mm
  • Microprocessor: CPU ARM 32-bit Cortex-M4
  • Input voltage: DC12V-DC24V
  • Supported displays: all BIQU TFT touch screen, LCD2004, LCD12864
  • Supported drivers: TMC5160 / TMC2208 / TMC2209 / TMC2130 / ST820 / LV8729 / DRV8825 / A4988
  • Driver working mode: TMC2130SPI/ TMC5160SPI/ TMC2208 UART
  • Temperature sensor interface: PC interface: USB, transfer rate 115200
    • Main plate: Bed, T0, T1, T2, 4-channel 100K NTC (thermal resistance), 1-channel K-Type (thermocouple)
    • Expanding plate: T1, T2, T3, T4, T5, 5-channel 100K NTC (thermal resistance), 1-channel K-type (thermocouple)
  • Recommended Software: Cura, Simplify3D, Pronterface, Repetier-Host, Makerware
  • Supported File Format: G-Code
  • Support Machine Type: XYZ, Delta, Kossel, Ultimaker, Corexy
  • Expansion Interface Support: BL Touch, WiFi, PWM, ADC, UART, I2C and CAN



Warning:
The product may require professional assembly, not a separate functional total.
