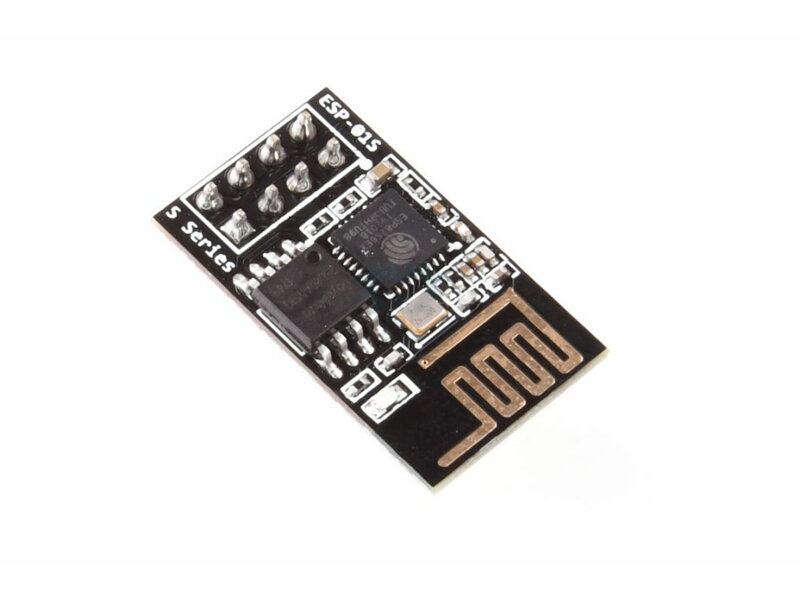

WiFi module ESP8266
WiFi module ESP8266 for 32-bit control plate skr. Read more

In stock <10pcs

$5.13

Producer: BIQU

Description
  • Wifi: 802.11 b /g /n
  • Frequency: 2.4 - 2.5 GHz (2400 - 2483.5 m)
  • Power consumption: 3.0 - 3.6 V (recommended 3.3 V)
  • Average working current: 80mA
  • Data interface: UART / HSPI / I2C / I2S / IR Remote Control / GPIO / PWM
  • Operating temperature: -40 ° C to 125 ° C
  • Storage temperature: room temperature
  • External interface: n/a
  • WiFi Mode: Station / Softap / Softap + Station
  • Safety Mechanism: WPA / WPA2
  • Encryption type: WEP / TKIP / AES
  • Upgrade Firmware: Local Serial Port, Cloud Upgrade, Download
  • Software Development: Customer Support, Customer Server, Secondary Provision of SDK to the customer
  • Network countercakes: IVP4, TCP / UDP / http / ftp
  • User configuration: AT + instructional set, cloud server, Android / iOS app
  • Use: SKR control boards

Warning:
The product may require professional assembly, not a separate functional total.
