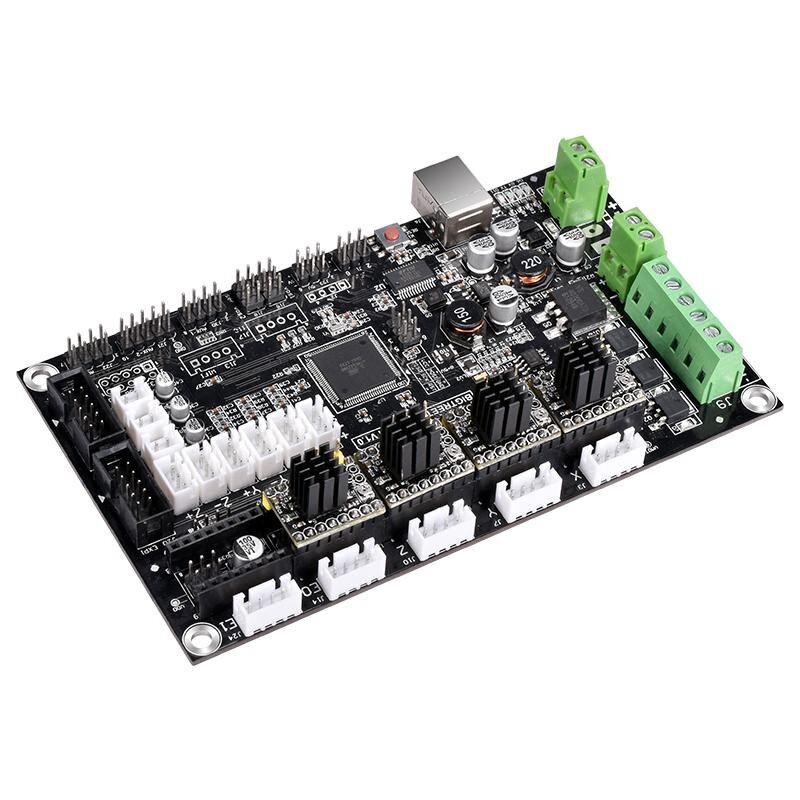

The control plate gene v1.0
The control plate gene v1.0 Read more

Permanently out of stock

$24.35

Producer: BIQU

Other currencies

Approximation of price, the exact amount is at the end of the shopping cart



Description
  • Atmega2560 and FT232 processors compatible with Arduino Mega are compatible with all ramps class firmware
  • Firmware can use the same configuration as RamPS1.4
  • 3 x Connector for temperature sensor (thermistor)
  • 5 x Step Motor Driver with Easy Setup of the MicroSs
  • 4 x Power MOSFET outputs with PWM options with voltage selection for main power supply. (bed, extruder0, extruder1, fan.)
  • 4 PCB layers, optimizing heat removal
  • 3 x 5V output, 3 x 12V output interface
  • 6 end connectors (signal, V+, V-) xmin / xmax / ymin / ymax / zMAX / zmax
  • Fuse to protect against short-circuiting
  • Size: 145x85mm

Warning:

The product may require professional assembly, not a separate functional total.
