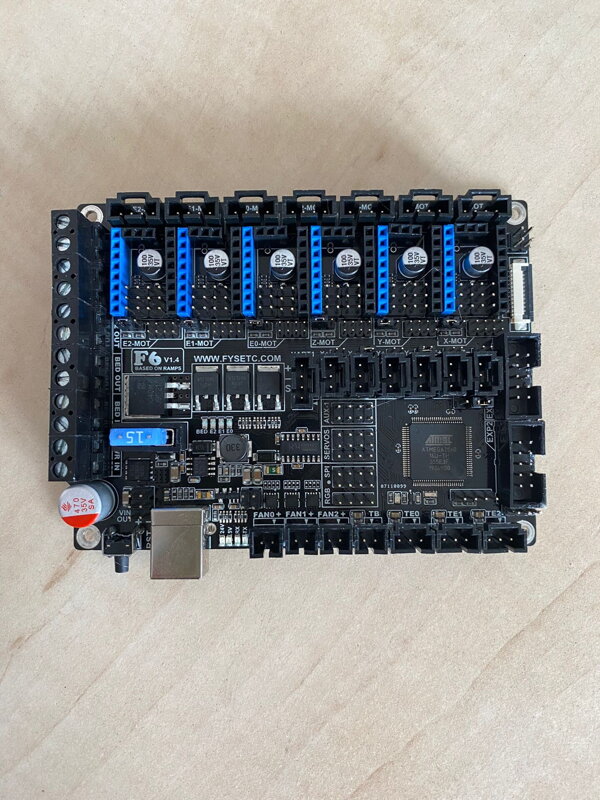

FYSETC F6 V1.4 Control Plate
Control plate for 3D printers with the possibility of using digitally controlled engines (TMC2130-SPI and TMC2208 -serial) without the need for external "wire". Read more

In stock <10pcs

$34.40

Producer: FYSETC

Other currencies

Approximation of price, the exact amount is at the end of the shopping cart



Description

FYSETC F6 for 3D printer and other CNC devices. It provides six drivers slots and supports step -compatible stepper controls, especially TMC control modules.
Function
• Compact Size: 127.35 mm x 92 mm
-Compatible with Arduino 2560-R3 (works with Sprinter, Repetier-Firmware, Marlin) < BR />-CH340 for high-speed USB serial connection-can be used with 9V-28V for engines /Heat Bed
-integrated high-precision power controllers (DC /DC): 5V 3A Max
- Automatic input selector for ATmega /Logic (Separate or USB power supply)
• Easy Display + SD-Card:
-compatible with Reprampdiscount SmartController on the board
-10p FPC for serial touch screen
-2x4 Pinheader Out for SD cards
• Up to 6 engine drivers with easy microclove settings and supports the TMC driver
• 10x PWM powerful MOSFET outputs (1 for Hotbed, 3 for Heat-End, 3 for fans, 3 for RGB LED strip)
• Hot-Bed is designed as a separate power supply for maximum current
• on-board external 2MB SPI Flash
• PCB:
-4 Layers
- 2oz copper inner layer, 1oz outside Far layers
-high quality, high-temperature FR4-TG130 PCB
-Gold finishes Enig

FYSETC F6 V1.4 Control Plate
FYSETC F6 V1.4 Control Plate

$34.40

New product question

Captcha

i

You also might need

  • The MKS gene V1.4 control board offers the possibility of 5 OS (XYZ and 2 extruders) - easy to connect the touch screen.

    Availability: Permanently out of stock

    $34.40

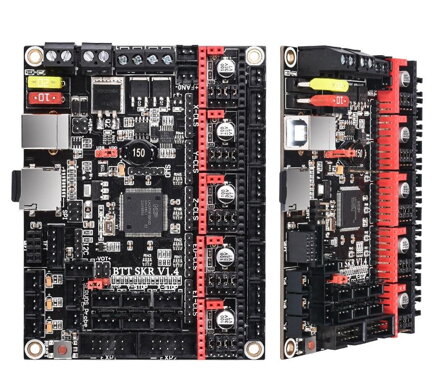

  • New, better, more powerful. Latest 32 bit control board from BTT. The main advantages include the double axis connector, multiple fans connectors. WIFI support, RGB rig control and much more.
