A replacement step engine that is in all Creality FDM printers. Read more

Engine

On demand

$18.90

Description

The engine can be supplied with a cable with a DuPont connector (RAMPS) or with the JST XH connector (MKS boards, etc.). Cable JST XH Order Here and cable DUPONT Here and Molex cable here

Suitable stepper motor select according to the following table:

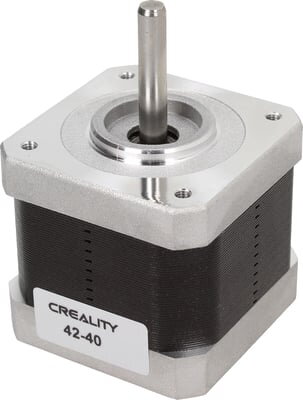

Creality Step Motor
Creality Step Motor

$18.90

New product question

Captcha

i

You also might need

  • The stepper engine cable has a Molex connector (for Rambo, Buddy, Fysetc F6/S6 control boards), page to the engine with Ph2.0 connector.

    Availability: In stock <10pcs

    $2.03

  • Cable for engines 0.28 Nm, 0.44 Nm, 0.56 Nm. 2 meters long cable to stepper engine. The cable is equipped with endings. On the one hand the ending for the engine (terminal ph2.0) on the other side of the JST-XH 2.54 (SKR, MKS, etc. control boards).

    Availability: In stock >10pcs

    from $1.34

  • Cable for motors 0.28 Nm, 0.44 Nm, 0.56 Nm. 1 meter cable to the stepper motor. The cable is equipped with terminals. On one side the end for the motor, on the other side DUPONT (mainly RAMPS plates).

    Availability: In stock >10pcs

    $1.34

Login

Forgotten password

Privacy preferences
We use cookies to enhance your visit of this website, analyze its performance and collect data about its usage. We may use third-party tools and services to do so and collected data may get transmitted to partners in the EU, USA or other countries. By clicking on 'Accept all cookies' you declare your consent with this processing. You may find detailed information or adjust your preferences below.

Privacy declaration

Show details
Our webpage stores data on your device (cookies and browser's storages) to identify your session and achieve basic platform functionality, browsing experience and security.
We may store data on your device (cookies and browser's storages) to deliver non-essential functions that improve your browsing experience, store some of your preferences without having an user account or without being logged-in, use third party scripts and/or sources, widgets etc.
Use of analytic tools enables us to better understand needs of our visitors and how they use our site. We may use first or third party tools to track or record your browsing of our website, to analyze tools or components you have interacted with or used, record conversion events and similar.
We may use cookies and third party tools to enhance products' and/or services' offer of ourselves or those of our partners, its relevancy to you, based on products or pages you have visited on this site or on other websites.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Login

Forgotten password

Product has been added to the cart
axis x axis y axis from extruder
Ender 3 42-34 42-34 round shaft 42-34 42-40
Ender 3 for 42-34 42-34 round shaft 42-34 42-40
Ender 3 v2 42-34 42-34 round shaft 42-34 42-40
Ender 5 42-34 dual shaft 42-40 round shaft 42-34 42-40
Ender 5 Plus 42-34 dual shaft 42-48 round shaft 42-34 42-40
CR-6 SE 42-34 42-40 round shaft 42-34 42-40
CR-10S for 42-40 42-40 round shaft 42-34 42-40
CR-10 v2 42-40 42-40 round shaft 42-34 42-40
CR-10 mini 42-34 42-34 round shaft 42-34 42-40
CR-10-S3 42-40 42-40 round shaft 42-34 42-40
CR-10-S4 42-40 42-60 round shaft 42-34 42-40
CR-10-S5 42-40 42-60 round shaft 42-34 42-40
CR-10 Max 42-40 dual shaft 42-60 round shaft 42-34 42-40
CR-20 for 42-34 42-34 round shaft 42-34 42-40
CR-X 42-40 42-40 round shaft 42-34 42-40
CR-5 for 42-34 42-48 round shaft 42-48 42-48
