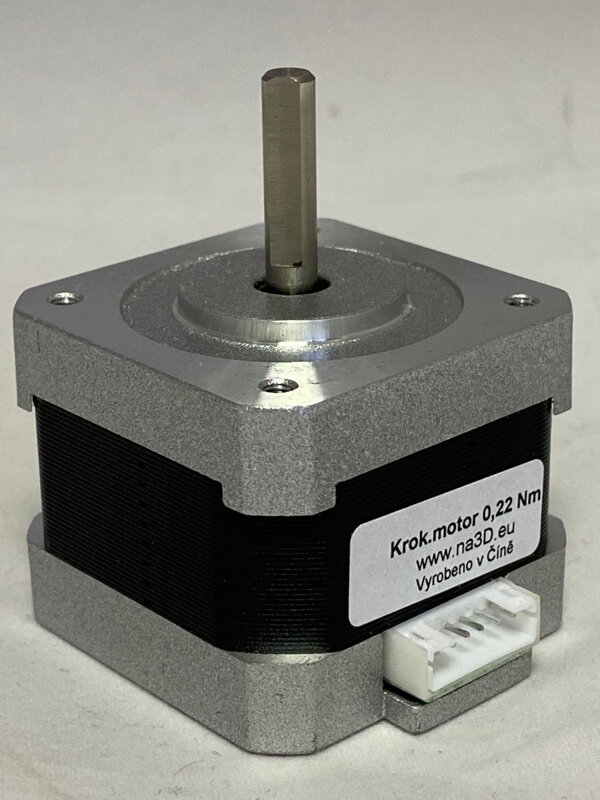

Step motor 0.22 nm
The 0.22 Nm stepper motor serves as an alternative replacement for SX17-1003VLQCEF engines. The engine is suitable for use on XYZ axes for extruder we recommend a stronger version. Read more

In stock <10pcs

$7.54

Producer: na3D

Description

The engine can be supplied with a cable with a DuPont connector (RAMPS) or with the JST XH connector (MKS boards, etc.). Cable JST XH Order Here and DUPONT cable here .

  • type: KS42STH34–1504A
  • length x width: 42mm x 42mm
  • height: 34mm
  • shaft length: 22mm
  • motor shaft diameter: 5 mm
  • voltage: 12V
  • torque: 2.2kg/cm
  • movement angle (step): 1.8 degrees ± 5%
  • resistance / Phase: 1.5Ohm
  • current/phase: 1.5 a.
  • adhesive force: 0.22 nm
  • maximum radial force: 28N (20mod shaft)
  • maximum axial force: 10n
  • 4 conductor connection
  • 2 phases
  • flange: Nema 17
  • weight: 0.22 kg
  • material: aluminum

Warning:
Product may require professional assembly, not separately functional in total.
