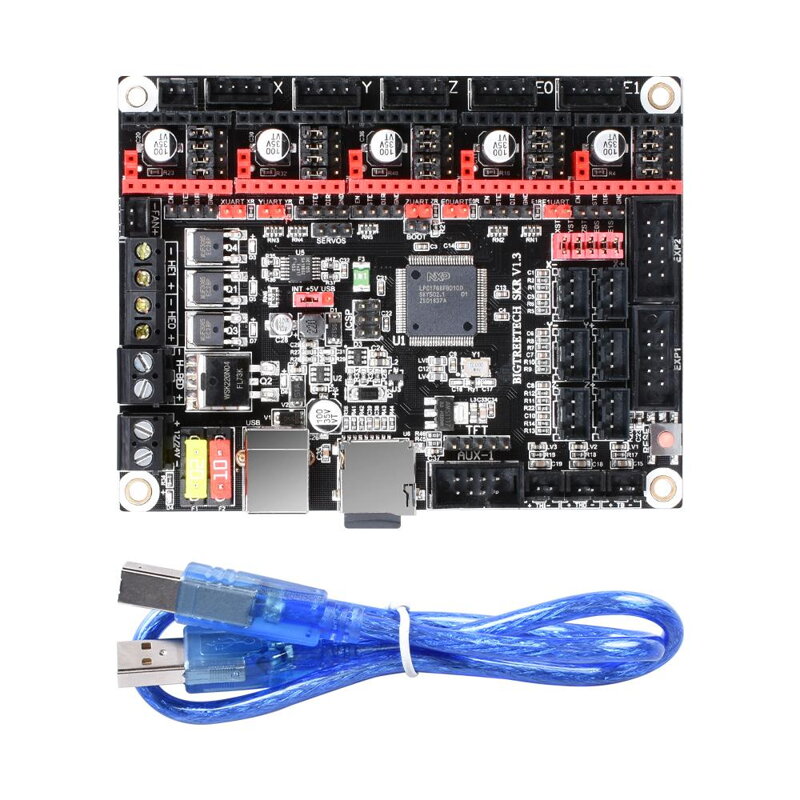

32-bit motherboard SK 1.3 $24.07 7%
Base plate suitable for small and medium printers. Read more

Permanently out of stock

$24.07 Discount $1.72

$22.35

Producer: BIQU

Description
  • Material: 4-layer PCB
  • Microprocessor: CPU ARM Cortex-M3
  • Input voltage: DC12V-DC24V, 5A-15A
  • Appearance size: 110 x 85 mm
  • Mounting size: 102 x 76 mm
  • Supported displays: TFT3.5, TFT2.8, 2004LCD, 12864LCD
  • Supported drivers: TMC2208 / TMC2130 / TMC2100 / ST820 / A4988 / DRV8825 / LV8729
  • Driver working mode: STEP / DIR, TMC2208-UART, TMC2130-SPI
  • Temperature sensor interface: Th0, Th1, TB, 3 -channel 100K NTC (thermal resistance)
  • File format: G-code
  • Support Machine Type: XYZ, Delta, Kossel, Ultimaker, Corexy
  • Use for: 3D printer

Instructions can be found here

Warning:


The product may require professional assembly, not a separate functional total.
