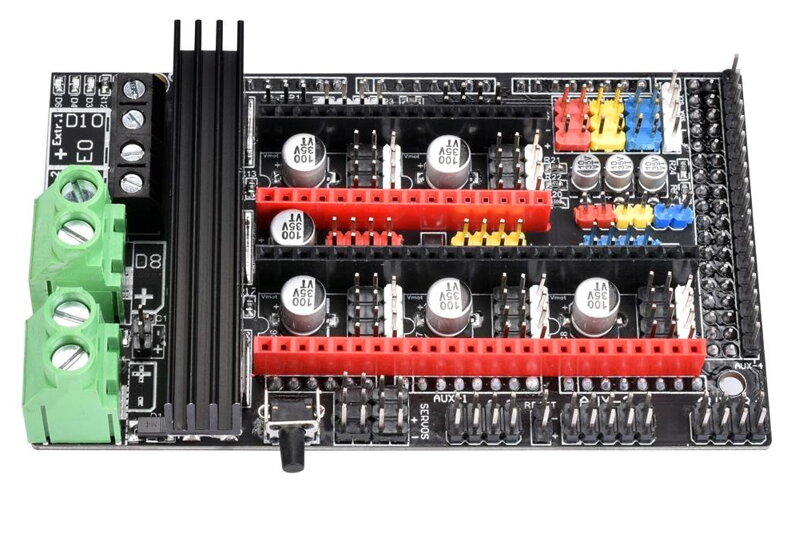

Description
- 4-layer printed joint Blue plate
- mosfets are "lying" better heat removal
- compatible with STEP/DIR and SPI mode
- x, y, z, E0, E1 - double connectors for easier connection of multiple engines
- better terminal block up to 30 and
- cooler for mosfet
- power only up to 270W
- mosfet for pad up to 170W
- hotend 40w
- engines 50W
- 5W fans
Advantage of 4-layer boards
- closed Earth's loop
- better electrical conductivity
- good distribution/heat removal
- stronger interference resistance
- high stability
Warning:
The product may require professional assembly, not a separate functional total.
