- Type of extruder: dual bondtech wheels
- Print temperature: 200-260 ° C
- Weight: 211g (including aluminum heating block and fan)
- Maximum pushing force: 7.5 kg (depending on filament)
- Flow rate (based on current): 600mm3/min (depending on filament)
- Rated steps on MM (16x): 932 steps per mm (additional calibration)
- Recommended engine current: 800mA
- Unique Cooling System
- Diameter of filament and tolerance: 1.75 +/- 0.05mm
- Direct extruder H2 works well in printing common and flexible materials including PLA, ABS, PETG, Nylon, TPU / TPE
Cooler structure on H2 extruder is optimized to ensure airflow down and away from the nozzle, which speeds up heat dissipation.
*is not compatible with nema 14 but is based on its design.

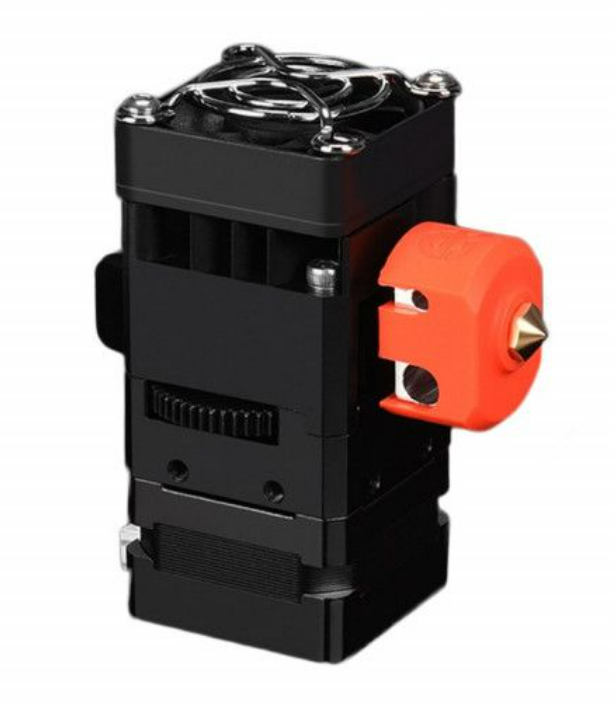

H2 Extruder Dual Driver Gear - Biq BX
