Description
BRACKING HEASLE WITH TAKE R1/8 ". Couplings are used for air conditioning and in 3D printing is used to guide the filament in bowden. Suitable for 3 mm Filament.
Use the Teflon ring to lightly insert and remove the tube.
Suitable for the dimensions of the outer d = 6 mm / inner d = 4 mm)
These couplings are used in copies of E3D Hotends and many other Hotends.

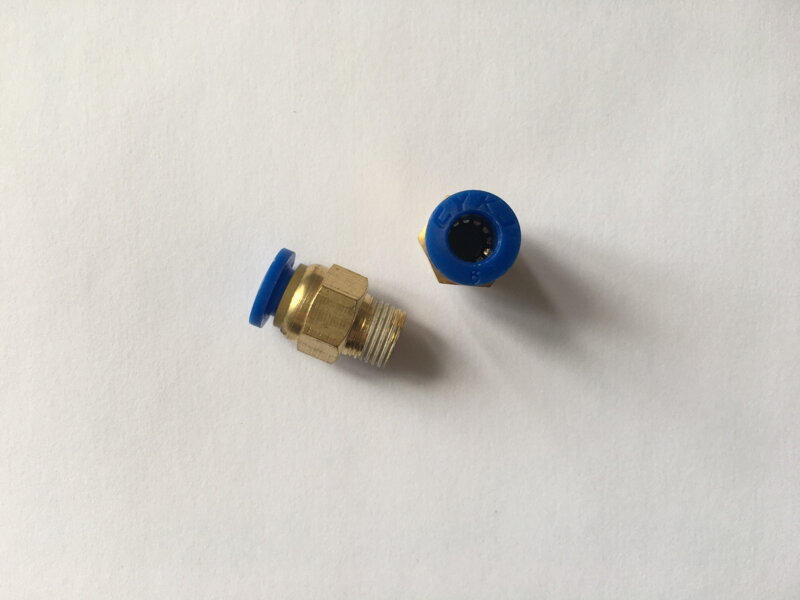

Pneumatic PC6-01 connector for 6 mm * 4 mm tube.
Direct fitting, thread R1/8 ", Teflon ring, outer hexagon d 12 mm.
(Product can be ordered after 1 piece, photo is only illustrative.)
