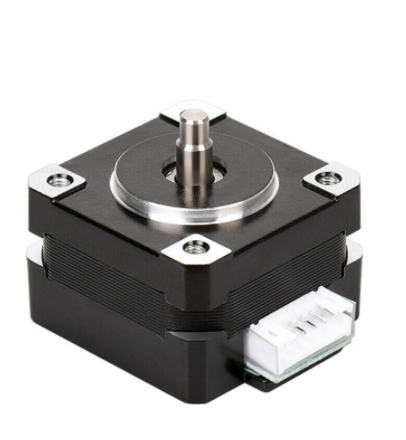

Pancake step engine - 23 mm thin 0.13 nm

Pancake step engine - 23 mm thin 0.13 nm

Reliable stepper engine using robotics or 3D printing. Read more

In stock <10pcs

12,27 €

Producer: na3D

Other currencies

Approximation of price, the exact amount is at the end of the shopping cart



Description
Rated current: DC 1.0A / Phase
  • phase resistance: 4.1x (± 10%) Ω / phase
  • phase inductance (1kHz): 4.1x (1 ± 20%) MH / Phase
  • Adverse torque: ≥130m n.Cm
  • Positioning torque: 20mn.m Ref.
  • Control: A-AB-B-in the clockwise direction
  • maximum frequency of no -load starting: ≥ 1400 pps
  • Maximum Operating Frequency of Penalty: ≥ 2500 pps
  • insulation resistance: ≥100 MΩ (DC 500V)
  • Insulation class: b
  • Electrical strength DC600V/1MA/1S
  • Quality: 132 g Ref.
  • moment of inertia: 30.8 g.cm3

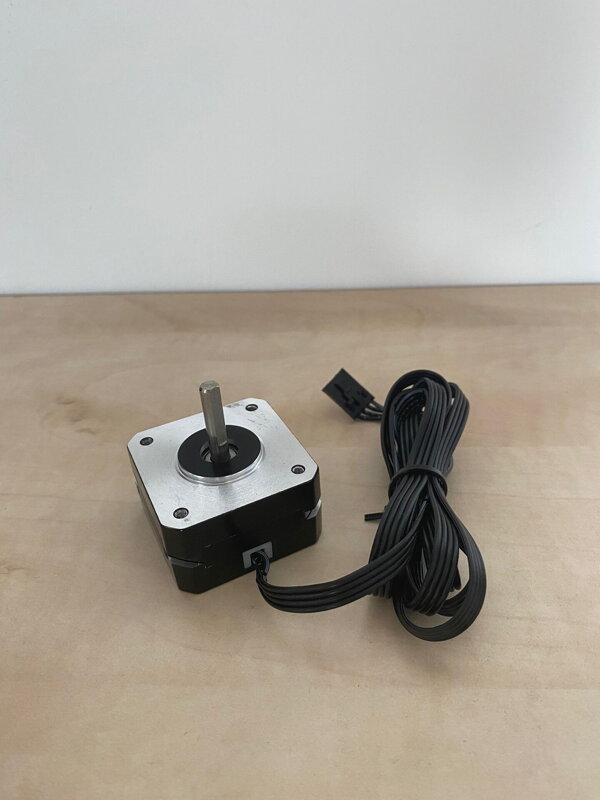

  • including an integrated 1 m cable with a molex connector
  • Pancake step engine - 23 mm thin 0.13 nm
    Pancake step engine - 23 mm thin 0.13 nm

    12,27 €
