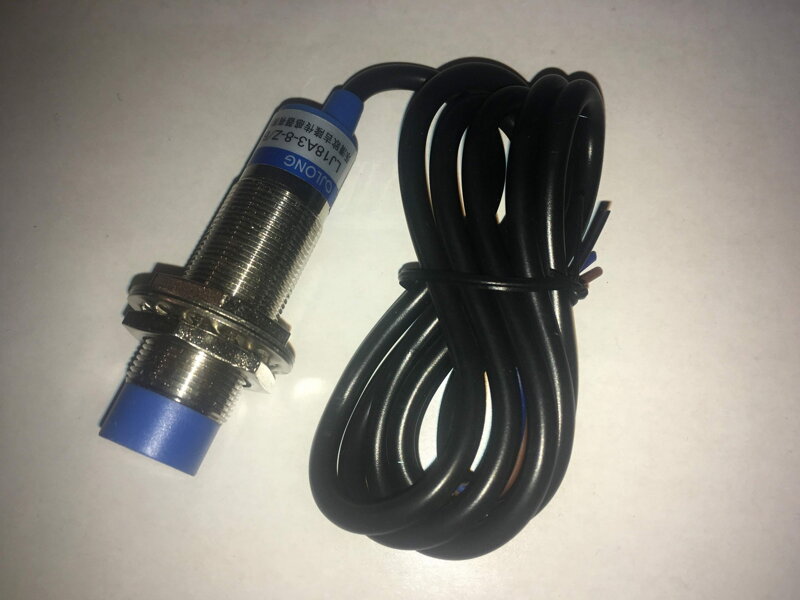

Induction proximity sensor LJ18A3-8-Z/BX

Induction proximity sensor LJ18A3-8-Z/BX

Sensor 8 mm detection distance. The sensor indicates the detection of the object by the appearance of the low state at the output and activation of the red LED. The sensor is equipped with a cable with a length of about 1m and a nut for easy assembly. The sensor is equipped with a cable with a length of about 1 m and a nut for easy assembly. The sensor tightness class is IP67. The power range is from 6 V to 36 V. Read more

Sold out


Producer: na3D

Other currencies

Approximation of price, the exact amount is at the end of the shopping cart

  • power voltage: DC from 6 to 36V
  • range (operating zone): 8 mm
  • working temperature: -25 ° C+ 75 ° C
  • type of housing: M18 cylindrical
  • case material: metal
  • insulation resistance: & gt; 50mom
  • standard detected object: metal
  • type of output: 3-water DC npn no (normally open)
  • signaling: LED
  • diode
  • head diameter: 16.5 mm
  • resistance class: IP67
  • sensor length: o 70 mm
  • output signal: Digital 300 MA


Product may require professional assembly, not separately functional.
