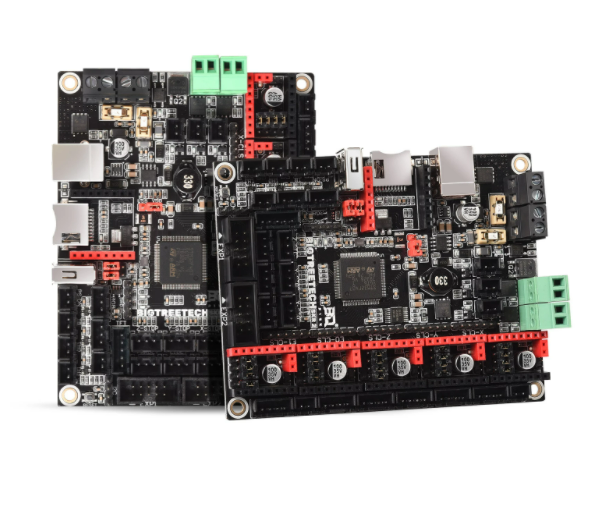

Control board - BIGTRESTECH SK V2.0

The Bigtreech control plate is V2.0 is a 32 -bit 3D printer motherboard. Designed and manufactured by a 3D printing team of Shenzhen Biq Technology Co., Ltd. He is the successor of a number of motherboards to v1.4 and v1.4 turbo and adds many functions. Read more

In stock <10pcs

$58.51

Producer: BIQU

Description

New features that significantly protect the motherboard and the rich expansion interface.

Properties:

Size: 110 x 85 mm

Microsprocessor: ARM Cortex-M4 CPU STM32F407VGT6

Input voltage: DC 12V - 24V

Logical voltage level: DC 3.3V

Firmware support: Marlin, Reprap, Firmware

WiFi Connection: ESP-12S, ESP-07S

Fan interface: Tree PWM Fans, Two Always-on Fans

Expanding interface: i2c, servos, Probe, PS-ON, PWE-DET, FIL-DET, RGB, etc.

Engine controllers: TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, ST820, LV8729, DRV8825, A4988, etc.

Supported step controller interface: SPI, UART, STEP/FIR

PC Communication Connection: UBS type B with configurable Baudrate - Bit speed

Recommended Software: Cura, Simplyfy3d, Pronterface, Repetier-Host, Makerware

In package: plate: 1x to 2 board, (note: This motherboard does not contain SD card.)



Warning:
Product may require professional assembly, not separately functional in total.

(Product can be ordered after 1 piece, photo is only illustrative.)
